Tinderbox v8 Icon

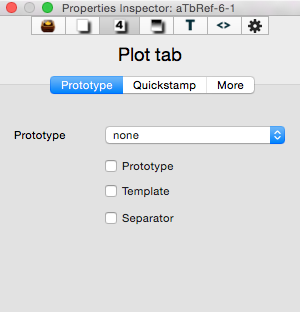

Prototype tab

Prototype tab

This tab defines a number of special purpose tasks for notes. This can be opened directly via the shortcut [Cmd]+3.

Prototype (list). This holds a list of prototypes defined for the current document. The current selection's prototype is pre-selected; default is 'none'. A prototype cannot use itself, but can use another prototype. So if a prototype is selected, it will be greyed out in the pop-up list.

Prototype (tick-box). Ticking this makes the selected note into a prototype. This is just one means of setting a note's prototype.

Template. Ticking this defines the note as being used to store code for an export template.

Separator. Ticking this defines the note as a separator and thus is visible only in Outline view.
