Map link highlighting

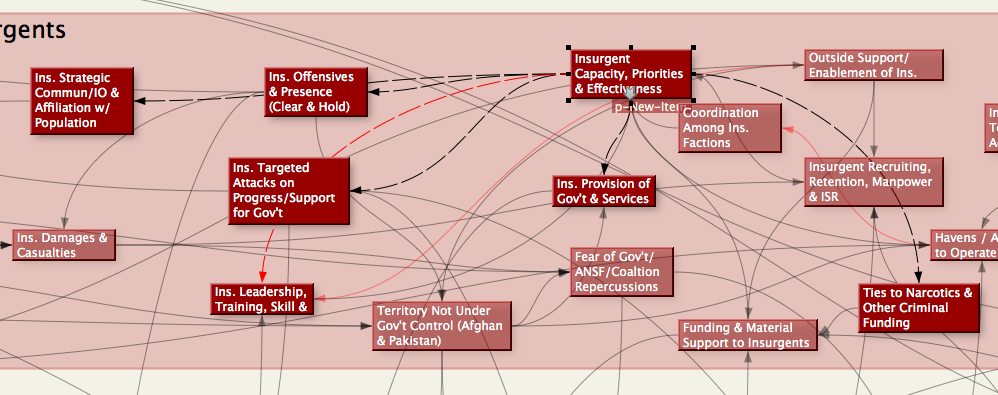

To help with exploring map linkages, Tinderbox will highlight the current outbound links from a single selected item (or the first of a multiple selection). In this mode all other notes/links are "dimmed" (drawn with extra translucency) unless

If no notes are selected, or if there are no links in the map, all notes are drawn normally.

Highlighted notes are shown in an animated dashed style, with the gaps cycling along the link from source to target. By Cmd+clicking additional items on the map the number of animated links can be increased - e.g. indicating a path through a set of linked notes. It is not intended as general eye candy - trying to animate every link on a large map may start up the computers fans and/or leave the map unresponsive.

A Tinderbox Reference File : Windows : Document Window : View pane : Map view : Map link highlighting
