Attributes Stamps pane

Tinderbox Icon

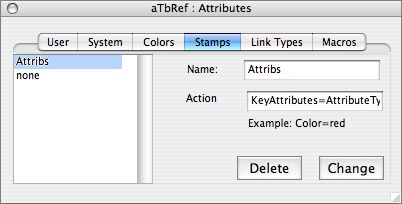

The left list box holds a list of all currently configured custom Stamps. Clicking on an item makes its values appear in the other boxes on the form.

IMPORTANT CHANGE. As of v3.6.0, Stamps apply complete actions (see below). When upgrading, existing stamps will still function. However, stamps created in v3.6.0+ may not function correctly if used in older version of of Tinderbox.

As Stamps are now complete actions, rather than just setting an individual attribute, stamps are free to

  • set many attributes at once
  • use conditions, shell scripts and macros

Set attributes work very well with stamps. Note especially that stamp actions can add, remove, and toggle set members.


sets the value of Pets to contain exactly two pets.


takes the current value of Pets, adds dog if it is not already a member, and removes hamster if it is a member.

The Name box shows the name of the currently selected Stamp. It is the also the name as seen listed in the Value Menu. The name can be changed.

(Deleted in v3.6.0: The Attribute pop-up holds a list of System and User Attributes that the Stamp can set.)

(Deleted in v3.6.0:The Value box holds the value to be set via the stamp.)

The Action box holds the action to be applied by the Stamp. (new to v3.6.0)

The Delete button deletes the currently selected Stamp (without further warning).

The Change button allows the changing of existing Stamps or the addition of new ones. To change a Stamp, select it, change the values and click the Change button. The add a new stamp, deselect all the existing Stamps and add data for the new Stamp, then click the Change button.

From v4.0.2, the Tinderbox XML format used for saving stamps has been changed. The file format has been incremented to 2.4 to reflect the new stamps. The change will be invisible to most (nearly all) users. The new format preserves white space in stamp actions. This matters in two cases:

  • using a stamp to include spaces, tabs, or new lines in a string attribute.
  • using a stamp to set the Text, where the new text contains paragraph breaks.

See the Release Notes for more technical detail for how the XML has been changed.

Attributes Stamps pane


Up: Attributes dialog
Previous: Attributes Colors pane  Next: Attributes Link Types pane

[Last updated: 3 Dec 2008]
