Roadmap dialog

Tinderbox Icon

Roadmap dialog

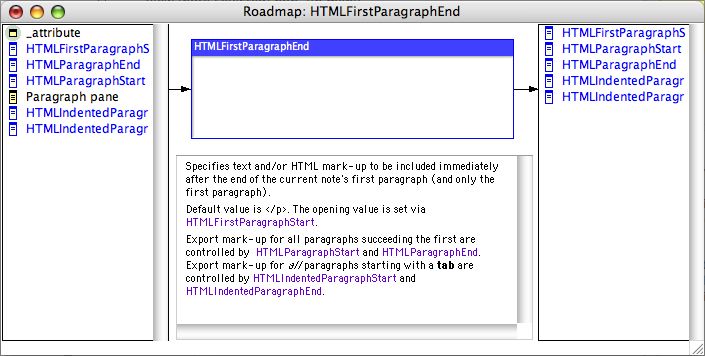

The Roadmap dialog is called from the Note Menu or from the note's view icon's pop-up menu. The Roadmap lets you see all of the links leading to or from a selected space — the local area of a complex hypertext.

The selected note will be shown at the top centre of the view, with a thumbnail view of its text below it (if you make the dialog/window bigger you can actually read the text). The left column lists all notes that are linked to this note. The right column lists all notes to which this note links. You can have many Roadmap windows open at once - each showing the links leading to and from a different note.

To change the focus of a roadmap, double-click any note in either column. The Roadmap will change to show it as the central note, with links leading in and out of it in the two columns. Any open view windows will also change to make that note the selected note.

Right click on any note icon in the right or left column for more options.

Up: Dialogs
Previous: Rename Note dialog  Next: Similar Notes dialog

[Last updated: 3 Dec 2008]
