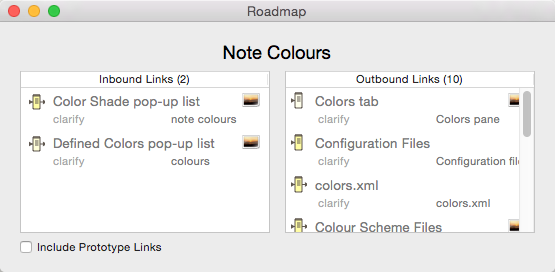

The Roadmap pop-over is called from the View menu or from the note's main view icon's pop-up menu. The Roadmap lets you see all of the links leading to or from a selected space — the local area of a complex hypertext (web links out of the document are not included. Aliases have their own Roadmap, not that of their original. The Roadmap not only gives and overview of inbound and outbound links but also allows exploration of the local hypertext (i.e. the TBX's content). Links out of the document, e.g. web links, are not visualised in the Roadmap
The left column lists all notes that link into the current note note; the column header lists a count of the inbound links. The right column lists all the note's outbound links, again with a count in the column header. To change the focus of a Roadmap, double-click any item in either column. The Roadmap will change to focus on the selected note, with links leading in and out of it in the two columns. The current window's main view will update to the selected note, if it is in scope. Thus if the main view is a map items on the map will be selected but not notes on other maps. In the latter case only the Roadmap updates.
The Road map title shows the $DisplayName of the notes who's data is being displayed. Each listed item shows:
- Line one. The $DisplayName of the linked one and its badge (if one is set).
- Line two. The link type of the link and, for text links, the link's anchor text.
- Rollover of either line: the full path of the linked note.
List items are rendered in their $Color. If the Outline Document Settings for 'Darker colors' is ticked, the item is rendered in a darker tiny of their $Color.
A tick-box (ticked by default) allows prototype-type links to be filtered out. Prototype assignments are stored, in the TBX, as links but are not normally used in maps and excluded from link count attributes. However, leaving such links in the last can help tracing prototype-based relationships in a document.
The Roadmap pop-up can be torn off into a stand-alone window. Such windows last until the end of the current session but cannot be saved to last across sessions. Tear-off Roadmaps can be useful triaging links as Browse Links is available only as a pop-up, so closes when note focus changes.
From v6.6.2, if double-clicking to follow a link and if the destination is not visible in the current view, Tinderbox will refocus the view so as to make it visible. This makes it easier to follow link-based trails around a document.
