Attributes Stamps pane

Tinderbox Icon

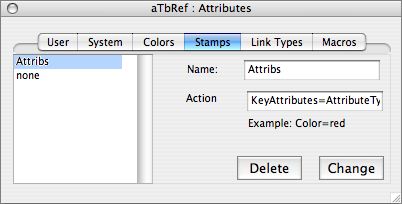

The left list box holds a list of all currently configured custom Stamps. Clicking on an item makes its values appear in the other boxes on the form.

Stamps are complete actions, rather than just setting an individual attribute, stamps are free to

  • set many attributes at once
  • use conditions, shell scripts and macros

Set attributes work very well with stamps. Note especially that stamp actions can add, remove, and toggle set members.


sets the value of Pets to contain exactly two pets.


takes the current value of Pets, adds dog if it is not already a member, and removes hamster if it is a member.

The Name box shows the name of the currently selected Stamp. It is the also the name as seen listed in the Stamps Menu. The name can be changed.

The Action box holds the action to be applied by the Stamp.

The Delete button deletes the currently selected Stamp (without further warning).

The Change/Create button allows the changing of existing Stamps or the addition of new ones; the caption is set according to whether a stamp is selected. To change a Stamp, select it, change the values and click the Change button. The add a new stamp, deselect all the existing Stamps and add data for the new Stamp, then click the Create button.

The Tinderbox XML format used for saving stamps has been changed. The change will be invisible to most (nearly all) users. The new format preserves white space in stamp actions. This matters in two cases:

  • using a stamp to include spaces, tabs, or new lines in a string attribute.
  • using a stamp to set the Text, where the new text contains paragraph breaks.

See the Release Notes for more technical detail for how the XML has been changed.

If the palette is resized, the Action box is re-sized. this is useful to assist viewing long code strings.

Attributes Stamps pane


Up: Attributes dialog
Previous: Attributes Colors pane  Next: Attributes Link Types pane

[Last updated: 14 Dec 2009, using v5.0]
